用途：气体泄露报警器

Applications: Gas leak detector

驱动条件：

电热电压 DC0.65V×0.1sec+0V×19.9sec，

电路电压

功耗： 0.42mW

3.3V 脉冲 0.1msec 内。

外部滤网：二氧化硅滤网

尺寸： 9.6φ x18.5 mm

重量： 1.2g

Standard operating condition:

Heater voltage/DC 0.65V×0.1sec+0V×

19.9sec

Circuit voltage/3.3v, pulse within 0.1msec

Power consumption: 0.42mW

Filter: Silica filter

Size: 9.6φ x18.5 mm

Weight: 1.2g

SMB-95-11的半导体式传感器，此传感器性能卓越，具备运用于是一款应用独自微线圈技术 mcMEMS® 开发电池驱动气体检测仪，便携式气体监测仪，设备的可燃性气体检测。间歇驱动耗电只有 0.1mWIoT/Wi-Fi，而且温度依存性非常小。该传感器具有甲烷高感度，酒精低感度，高速应答，长寿命，耐中毒等优越特性，适用于可靠性高的气体检测装置中。

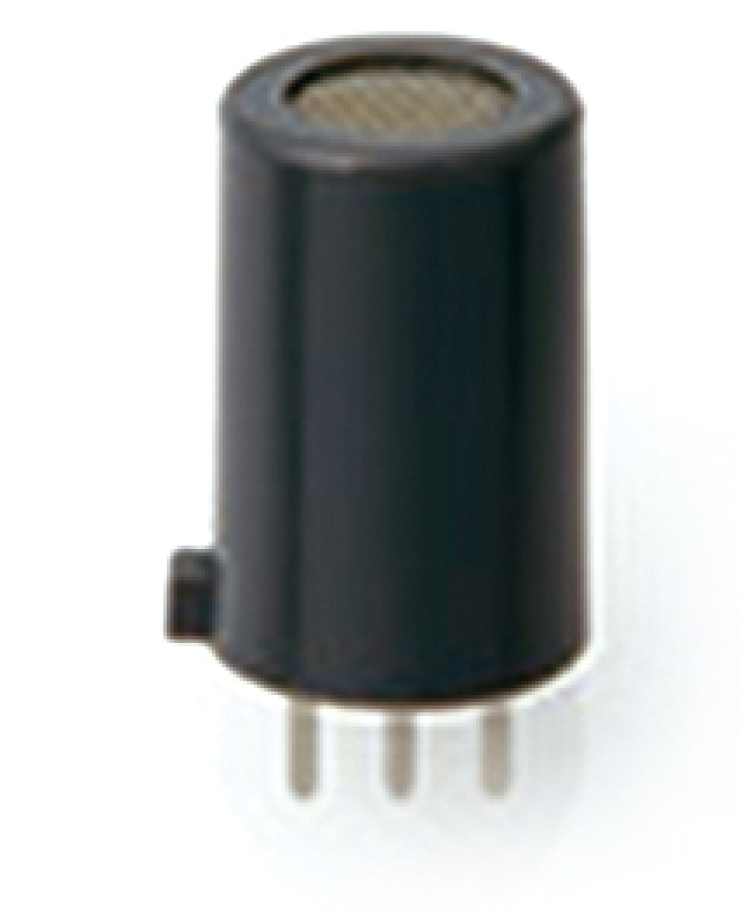

The SMB-95-11 is a mcMEMS® semiconductor gas sensor using the micro colling technology. This sensor

has excellent features to detect flammable gases for battery operated gas detector,portable gas monitor,IoT/WIFI devices and others. With significant low power consumption concept (0.1 mW) and small temperature dependency.High sensitivity, low sensitivity to noise gases, quick response speed and strong poisoning resistance features achieve reliable gas detection system applications.

对象气体： 甲烷 Target gas: Methane
